PRODUCTS CENTER

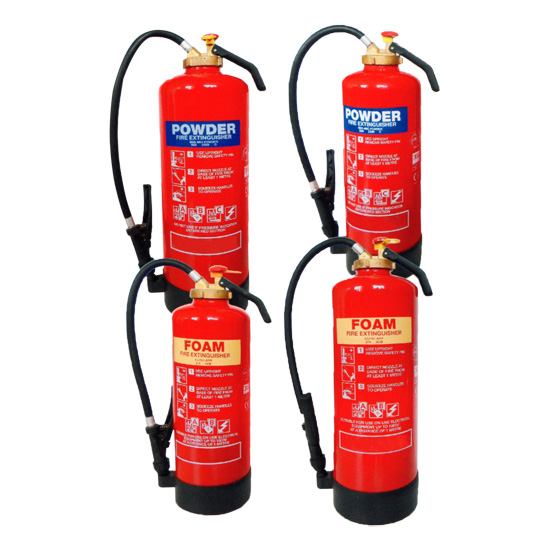

CE Approval 6KG ,9KG ABC Powder Fire Extinguishers with Internal CO2 Cartridge,CE Approval 6L,9L AFFF Foam Fire Extinguishers with Internal CO2 Cartridge
MODEL NO.: FP-ZB-PDC6,PDC9,FMC6,FMC9
KEY POINTS

 Extinguisher epoxy polyester Painting with High UV resistance for extra protection to with stand extreme temperatures.

 CE approved Cylinders with Phosphate Treated.

 CE approved Foam cylinders with plastic lining inside.

 CE Brass valve with Safty release to ensure safety.

 100% cylinders must pass the hydraulic pressure test, without any leakage.

 Internal Cartridge: CO2 Gas.

SPECIFICATION
Model: FP-ZB-PDC6 FP-ZB-PDC9 FP-ZB-FMC6 FP-ZB-FMC9
Propellant Type: CO2 Cartridge CO2 Cartridge CO2 Cartridge CO2 Cartridge
Medium: ABC Powder ABC Powder AFFF Foam AFFF Foam
Capacity: 6KG 9KG 6L 9L
High-Approx(mm): 500 555 500 555
Shell-Approx Dia(mm): 154 182 162 182
Temperature Range: -30℃ ~+60 ℃ -30℃ ~+60 ℃ +5℃ ~+60 ℃ +5℃ ~+60 ℃
Fire Rate: 43A 233B C 55A 233B C 21A 144B 27A 233B
Weight Full-Approx(kg): 10.7 14.7 11.2 15.28
Discharge Time Approx.(Second): 17 19 22 30
Working Pressure/Test Pressure(bar): 15/27 15/27 15/27 15/27
