BSI EN3 Kitemark Approval 6L,9L AFFF Foam Fire Extinguishers with Fire rate 27A183B, 34A233B
MODEL NO.: FP-ZB-FM6RS,FM9RS
KEY POINTS

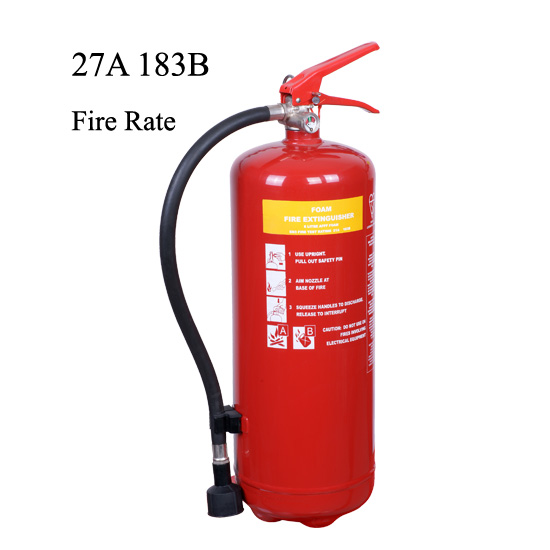

 With 6L Foam Top Industry Fire Rate :  27A183B

 With 9L Foam Top Industry Fire Rate :  34A233B

 Extinguisher epoxy polyester Painting with High UV resistance for extra protection to with stand extreme temperatures.

 CE approved plastic lining Cylinders with Phosphate Treated.

 CE Brass valve with Safty release to ensure safety.

 100% cylinders must pass the hydraulic pressure test, without any leakage.

 Heavy duty Brackets for Marine and truck applications can be selected.

. Agent: High Performance AFFF Foam, is capable of fighting class A. B. Fires.

SPECIFICATION



Model: FP-ZB-FM6RS FP-ZB-FM9RS
Capacity(Litre): 6 9
High-Approx(mm): 537 620
Shell-Approx Dia(mm): 162 182
Temperature Range: +5℃ ~+60 ℃ +5℃ ~+60 ℃
Fire Rate: 27A 183B 34A 233B
Weight Full-Approx(kg): 9.6 14.0
Discharge Time Approx.(Second): 22 30
Working Pressure/Test Pressure(bar): 15/27 15/27
