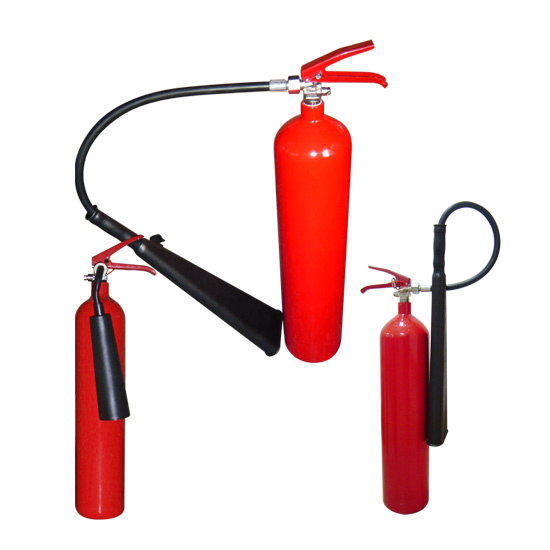

BSI EN3 Kitemark Approval 2KG,5KG Alloy Steel CO2 Fire Extinguishers,BSI EN3 Kitemark Approval 2KG,5KG Aluminium CO2 Fire Extinguishers
MODEL NO.: FP-ZB-CD2,CD2A,CD5,CD5A
KEY POINTS

 Extinguisher epoxy polyester Painting with High UV resistance for extra protection to with stand extreme temperatures.

 CE approved Cylinders with Phosphate Treated.

 CE Brass valve with Safty release to ensure safety.

 Burst disc is approved 97/23EC of EN-3 certificate.

 100% cylinders must pass the hydraulic pressure test, without any leakage.

 Heavy duty Brackets for Marine and truck applications can be selected.

 Capable of fighting class B& E Fires.

SPECIFICATION



Model: FP-ZB-CD2 FP-ZB-CD2A FP-ZB-CD5 FP-ZB-CD5A
Cylinder Material: Alloy Steel Aluminium alloy Alloy Steel Aluminium alloy
Capacity(KG): 2 2 5 5
High-Approx(mm): 565 545 745 675
Shell-Approx Dia(mm): 103 111 136 152
Temperature Range: -30℃ ~+60 ℃ -30℃ ~+60 ℃ -30℃ ~+60 ℃ -30℃ ~+60 ℃
Fire Rate: 34B 34B 70B 70B
Weight Full-Approx(kg): 6.2 5.0 14.4 12.0
Discharge Time Approx.(Second): 6 6 9 9
Working Pressure/Test Pressure(bar): 150/250 150/250 150/250 150/250
