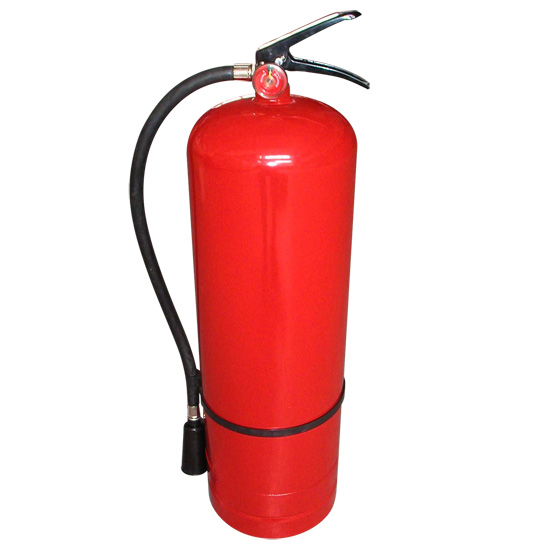

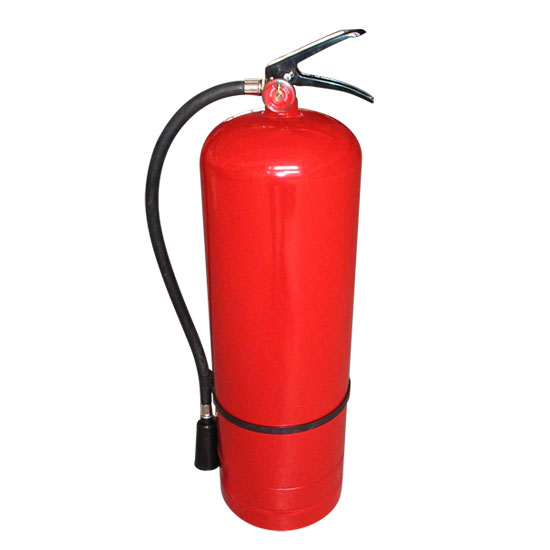

12KG 40% ABC Dry Powder Fire Extinguisher With Foot Ring
MODEL NO.: FP-JS-03-09
KEY POINTS

Extinguisher cylinders have a phosphate under treatment to resist corrosion.

 External Epoxy Paint adds extra protection to with stand extreme temperatures.

 100% cylinders must pass the hydraulic pressure test, without any leakage.

 Valve material: Brass

 Agent: 40% ABC dry powder(Monoammonium Phosphate) is capable of fighting class A. B. C & E Fires.

 The products are always exported to South America with stamp of

XXKG PT 14KG/cm2 PP 35KG/cm2

Month/Year xxxxxx (Serial number).

SPECIFICATION



Model: FP-JS-03-09


High-Approx(mm): 630
Shell-Approx Dia(mm): 180
Cylinder Min Wall-thickness(mm): 1.3mm
Volume: 14.6L
Material:  DC01
Weight Full-Approx(kg): 16.6
 Fire rate: 34A183BC
CTN size: 19X19X72.5CM/1PC
Max working Pressure/Test Pressure(Bar): 16/25
